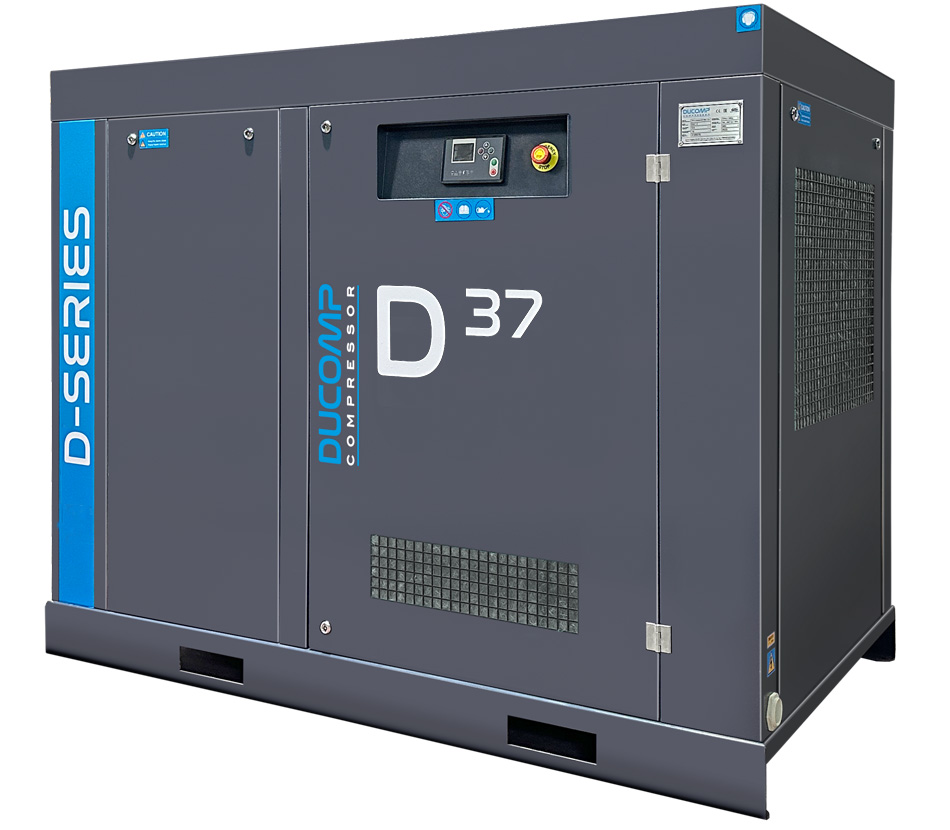

D Series Drict Drive Air Screw Compressor
CORRECT TRANSFER
The transmission systems are 1:1 coupled. In this system, where the belt-pulley mechanism is eliminated, maximum correct performance is achieved with low screw speed and the compressor is intended to serve for longer periods of operation.
THE RIGHT SOLUTION
D Series Screw compressors are designed for industrial enterprises and will accurately meet the compressed air needs of your business with their long life, low screw speed, long maintenance interval, remote monitoring and control opportunity.*
1:1 Coupled Transmission System
Thanks to the lossless transmission, the screw element rotating at the same speed as the engine provides long-lasting performance at low speed. In this way, the maintenance costs of your business decrease significantly.
High Efficiency Electric Motor
IE3 High Efficiency and IP 55 protection
class electric motor is dusty,
Exceptional in humid and hot environments
provides performance.
External Cooling System
Atmospheric air is filtered into the cabin
cooling system starting with suction
along with the compressor's toughest
It ensures operation at optimum temperature under conditions.
Screw Block
Optimized rotor profiles and minimized
Thanks to the transmission losses
maximum efficiency of the energy spent
A screw element was used to transform the
PLC Kontrol Paneli
Programmable, compatible with Industry 4.0
Thanks to PLC control panel
You can program your compressor 24/7,
You can watch and record remotely.
Durable and Quiet Canopy
Resistant to harsh climatic conditions and electrostatically painted, the cabin offers long-lasting and quiet operation with the advantage of 1:1 drive and radial fan. It matches the air needs of your business. In this way, it eliminates idle operating energy and saves up to 36%.
Long Life Filter System
Panel Filter in EU3 class and 99.5%
Double stage with efficient air filter
Provides filtering. In this way
Our compressors need two maintenance services in dusty environments.
It works with the efficiency of the first day.
| D Series Direct Drive Air Screw Compressor | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Model |
Capacity | Motor Power | Voltage | Connection | Dimensions (W x L x H ) |
|||||||
| 7 | 10 | 13 | kW/hp | volt | inch | mm | ||||||
| D22 | 3,9 | 3,4 | 2,8 | 22/30 | 400/3 | 1 1/4 ” | 840X1380X1430 | |||||
| D30 | 5,4 | 4,9 | 3,7 | 30/40 | 400/3 | 1 1/2 ” | 1130X1880X1510 | |||||
| D37 | 6,5 | 5,6 | 4,9 | 37/50 | 400/3 | 1 1/2 ” | 1130X1880X1510 | |||||
| D45 | 7,9 | 7,2 | 6,3 | 45/60 | 400/3 | 1 1/2 ” | 1130X1880X1510 | |||||
| D55 | 9,8 | 9,1 | 7,3 | 55/75 | 400/3 | 2 ” | 2000X1150X1540 | |||||
| D75 | 13,2 | 11,8 | 9 | 75/100 | 400/3 | 2 ” | 2000X1150X1540 | |||||
| D90 | 16,4 | 14,2 | 11,9 | 90/125 | 400/3 | 2 ” | 1300X2310X2000 | |||||
| D110 | 19,5 | 16,1 | 13,1 | 110/150 | 400/3 | 2 ” | 1500X2650X2050 | |||||
| D132 | 23,2 | 19,5 | 16 | 132/180 | 400/3 | 2 ” | 1500X2650X2050 | |||||
| D160 | 27,5 | 24,2 | 20,7 | 160/220 | 400/3 | 2 1/2 ” | 1920X3410X2620 | |||||
| D200 | 34,5 | 30,7 | 24,5 | 200/270 | 400/3 | 2 1/2 ” | 1920X3410X2620 | |||||
| D250 | 44 | 37,5 | 30,6 | 250/340 | 400/3 | 3 ” | 1920X3410X2620 | |||||
| D315 | 47,2 | 43,7 | 41,5 | 315/430 | 400/3 | 3 ” | 1920X3410X2620 | |||||
