D-V Series Drict Drive VSD Air Screw Compressor
Simple Design - Easy to Use
DV Series compressors will be your most important partner in your business for many years with their ergonomic design, equipment quality and superior engineering, low energy costs, low maintenance costs and superior performance.
Efficient and Reliable
In addition to the Features of D-Series Compressors, D-V Series compressors maximize energy efficiency thanks to the frequency-controlled inverter drive for efficiency.
Correct Solution
D-V Series compressors provide energy savings of up to 36% due to idle operation, inrush current and operation at optimum pressure set value after matching the variable air demand and compressor capacity to the operating air requirement..
1:1 Coupled Transmission System
With engine thanks to lossless transmission
The screw element rotating at the same speed is low
Provides long-lasting performance over time.
In this way, the maintenance expenses of your business are also reduced.
drops significantly.
High Efficiency Inverter Drive
Ducomp D/V series compressors automatically adjust the engine at constant pressure and match it with the air needs of your business. In this way, it eliminates idle operating energy and saves up to 36%.
PLC Control Panel
Thanks to the programmable PLC control panel compatible with Industry 4.0, you can program, remotely monitor and record your compressor 24/7.
High Efficiency Electric Motor
The electric motor with İE3 High Efficiency and IP55 protection class provides exceptional performance in dusty, humid and hot environments.
External Cooling System
Together with the cooling system, which starts by filtering atmospheric air and sucking it into the cabin, it ensures that the compressor operates at optimum temperature under the most challenging conditions.
Screw Block
Thanks to optimized rotor profiles and minimized transmission losses, the screw element is used to transform the energy spent into maximum efficiency.
Long-lasting Filter
It provides dual-stage filtration with an EU3 class Panel Filter and a 99.5% efficiency air filter. In this way, our compressors operate with the efficiency of the first day between maintenance in dusty environments.
Durable and Quiet Canopy
Resistant to harsh climatic conditions and
The electrostatic painted cabinet offers long-lasting and quiet operation with
D V Series Drict Drive,Variable Speed Drive Air Screw Compressor Varaible |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Model |
Capacity | Motor Powe | Voltage | Connection | Dimensions (W x L x H ) |
|||||||
| 7 | 10 | 13 | kW/hp | volt | inch | mm | ||||||
| D7,5 V | 1,25 | 0,95 | 0,75 | 7,5/10 | 400/3 | 3/4 ” | 750X1150X1300 | |||||
| D11 V | 1,9 | 1,45 | 1,15 | 11/22 | 400/3 | 3/4 ” | 750X1150X11300 | |||||
| D16 V | 2,7 | 2,2 | 1,8 | 15/20 | 400/3 | 1 ” | 840X1380X1430 | |||||
| D18,5 V | 3,2 | 2,7 | 2,2 | 18,5/25 | 400/3 | 1 ” | 840X1380X1430 | |||||

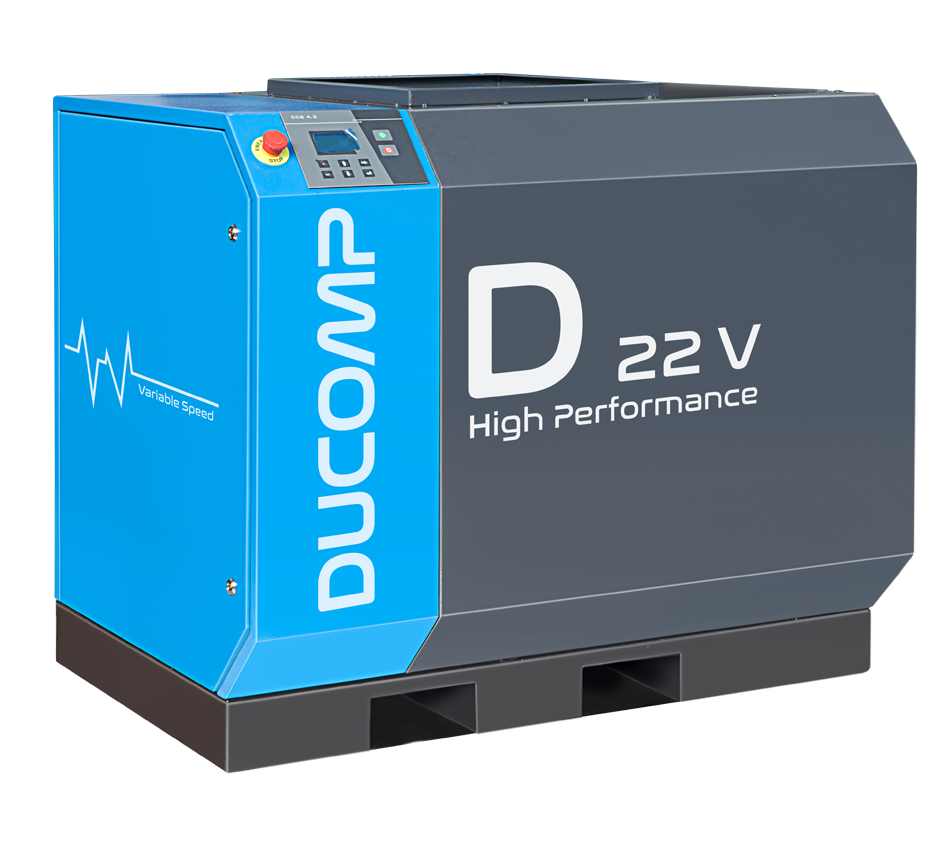

| D22 V | 3,9 | 3,4 | 2,8 | 22/30 | 400/3 | 1 ” | 840X1380X1430 | |||||
| D30 V | 5,4 | 4,9 | 3,7 | 30/40 | 400/3 | 1 1/2 ” | 1130X1880X1510 | |||||

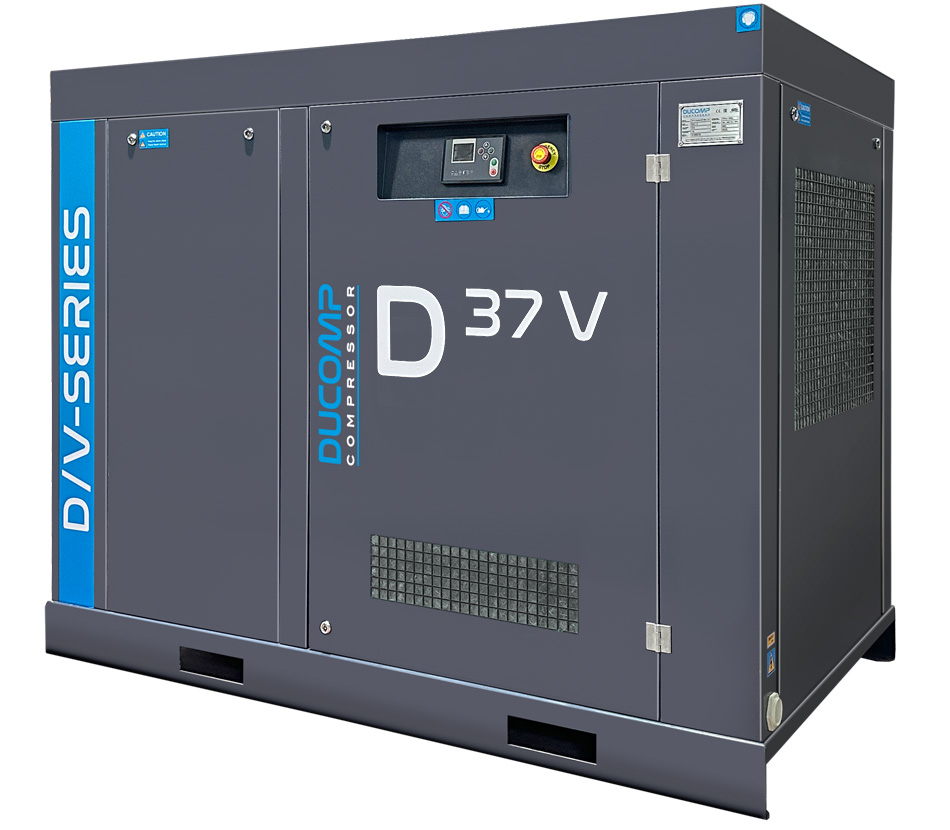

| D37 V | 6,5 | 5,6 | 4,9 | 37/50 | 400/3 | 1 1/2 ” | 1130X1880X1510 | |||||
| D45 V | 7,9 | 7,2 | 6,3 | 45/60 | 400/3 | 1 1/2 ” | 1130X1880X1510 | |||||
| D55 V | 9,8 | 9,1 | 7,3 | 55/75 | 400/3 | 2 ” | 2000X1150X1540 | |||||

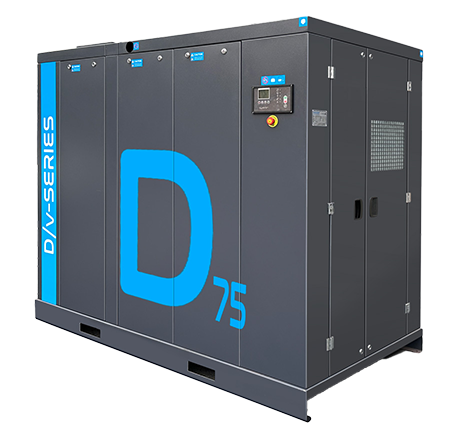

| D75 V | 13,2 | 11,8 | 9 | 75/100 | 400/3 | 2 ” | 2000X1150X1540 | |||||
| D90 V | 16,4 | 14,2 | 11,9 | 90/125 | 400/3 | 2 ” | 1300X2310X2000 | |||||
| D110 V | 19,5 | 16,1 | 13,1 | 110/150 | 400/3 | 2 ” | 1500X2650X2050 | |||||
| D132 V | 23,2 | 19,5 | 16 | 132/180 | 400/3 | 2 ” | 1500X2650X2050 | |||||
| D160 V | 27,5 | 24,2 | 20,7 | 160/220 | 400/3 | 2 1/2 ” | 1920X3410X2620 | |||||
| D200 V | 34,5 | 30,7 | 24,5 | 200/270 | 400/3 | 2 1/2 ” | 1920X3410X2620 | |||||
| D250 V | 44 | 37,5 | 30,6 | 250/340 | 400/3 | 3 ” | 1920X3410X2620 | |||||
| D315 V | 47,2 | 43,7 | 41,5 | 315/430 | 400/3 | 3 ” | 1920X3410X2620 | |||||
